High-speed welding radiator welding production line / Transformer panel fully automatic welding production line

تصویر بزرگ : High-speed welding radiator welding production line / Transformer panel fully automatic welding production line

جزئیات محصول:

Place of Origin:	China
نام تجاری:	TRINTFAR
گواهی:	CE
Model Number:	FVM-170KVA

پرداخت:

Minimum Order Quantity:	1
قیمت:	USD 10000-50000 set
Packaging Details:	wooden box
Delivery Time:	Within 90 days of the final payment
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	50 per year

مخاطب

High-speed welding radiator welding production line / Transformer panel fully automatic welding production line

شرح

Machinery Capacity::	120m/min	After Warranty Service:	Video technical support
Automatic grade:	Automatic	Condition:	New
Voltage:	220V/380V	Power(w):	220-450KW
Name:	High Efficiency China Steel Plate Radiator Production Line	Core Components::	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear,

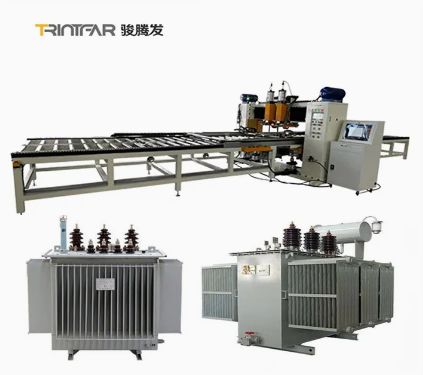

Transformer Fin Panel Welding Line Machine For Radiator

Feature

Juntengfa has developed an automated production line for plate heat exchangers in the home appliance industry. The production process is mainly spot welding and seam welding edge sealing, so the production is efficient and stable. This production line includes servo motors, electric welding equipment, intermediate frequency seam welding equipment, PLC control and other components. This production line is highly automated, and can automatically load and unload materials and weld plate radiators. Automation can continue to produce 24 hours without any impact. It is an effective solution for mass production of plate devices.

1. High degree of automation, automatic loading and unloading and welding;

2. Faster to reach the set current, fast welding speed;

3. Use intermediate frequency power supply to save energy consumption and reduce production costs;

4. Reduce the parallel connection of secondary circuits without disturbing the power grid;

5. The welding is firm, the weld seam has high air tightness, and the yield rate is high;

6. The production line has strong reliability and can continue to produce 24 hours a day;

7. Customized, plate radiators of various specifications can be produced.

Specification

FVM-170KVA	parameters
Input voltage	380±10% (three-phase) 50HZ
Input power	2x250KVA
Secondary Voltage	11.3V
Maximum short circuit current	50KA
Insulation resistance	Input power to the fuselage insulation resistance ≥ 2.5MΩ
Working environment	temperature≤40℃, humidity≤90%
Cylinder model	Φ160*80
Maximum working pressure	12000N
Air source pressure	0.6MPa
Water source pressure	0.15MPa~0.30MPa
Water flow	30L/min
Welding wheel diameter	280mm
